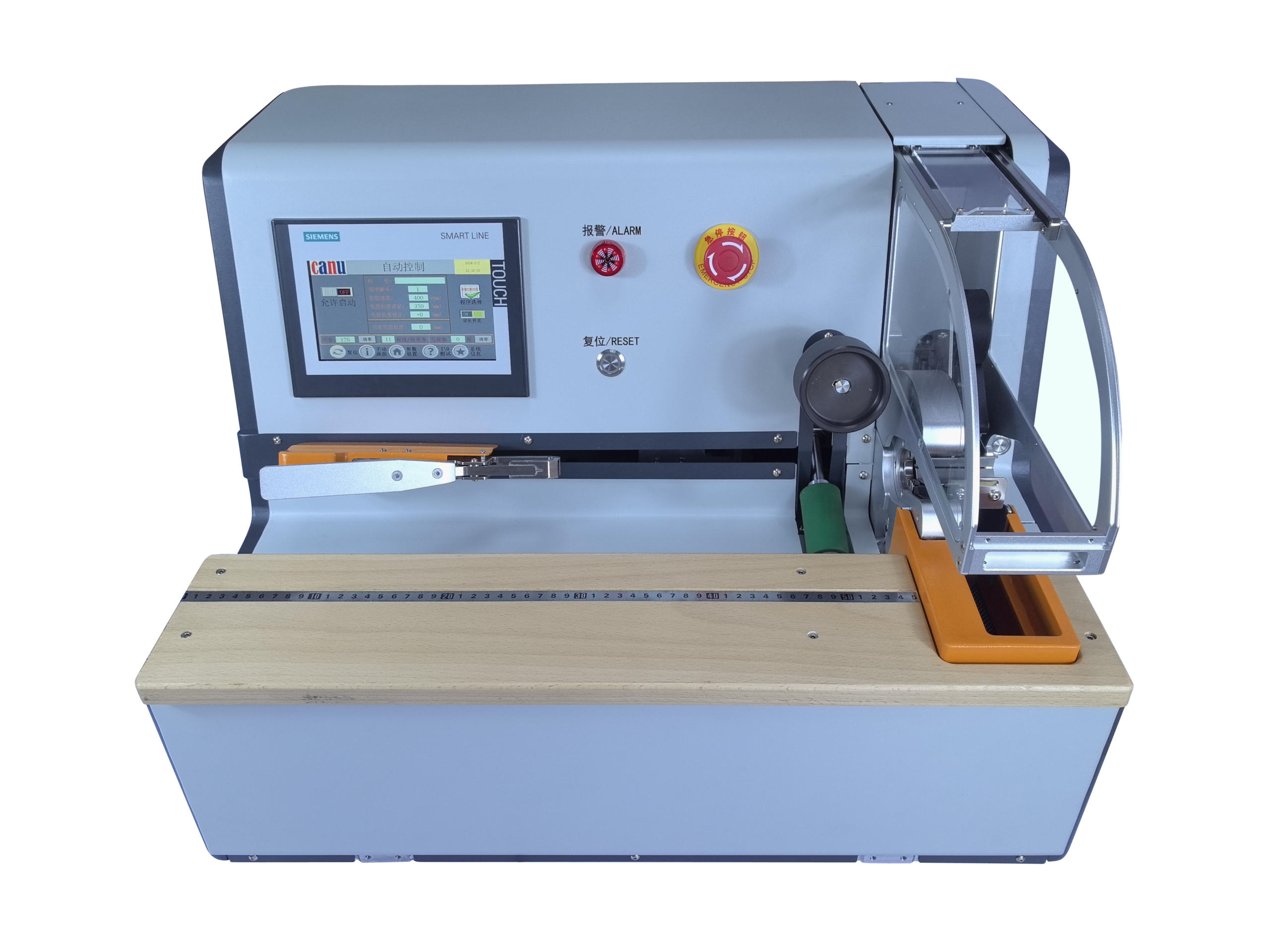

As a auto traction taping machine, with the function of adjusting the wrapping length, the product has various advantages, such as complicated tape-wrapping technology, dragging and wrapping the wire at initial position, pre-setting the length of wrapping, reliable protection for operators, and so on. This machine is suitable for taping thin wire or harness with few branches. It greatly improves taping quality and efficiency, accurately controls overlap rate, sets the length of taping, and saves much tape cost.
Product Feature
L-taper-I/II-BS machine makes the harness winding process more convenient, more efficient and more intelligent.
Set Taping Distance
The equipment can achieve automatic tape-wrapping at a pre-set distance, maximizing production efficiency. A two-meter length of wrapping can achieve an accuracy of $\pm$5mm.
Pneumatic Clamping
The wire is clamped by soft material which does not damage the wire and will not pull the wire off the connector.
Good Applicability
The machine is applicable not only to large diameter wire harness, but also to small diameter wire harness, reducing or eliminating the twisting phenomenon when taping those small diameter wire harnesses.
Personalized Technology
The program in the machine helps operators set complicated technology parameters, such as the length of each wrapping, wrapping rotating-speed, horizontal feeding speed, and so on. The equipment realizes consecutively wrapping, interval wrapping, or the combination of consecutive and interval wrapping.
Two-level Authority Management
In order to manage the technology parameters in the machine, two levels authority are set: operator and manager. Only manager is responsible to set the technology parameters.
Characteristics
-
The machine is suitable for thin-wires or corrugated-pipes, achieving very good wrapping effect.
-
The machine has alerting function to notice operators to replace tape.
-
Good protection-cover ensures the safety of operators and wires.
-
Barcode scanners can connect with the machine by scanning relevant program.
-
The machine reserves ethernet ports for exchanging data and connecting with MES system.
